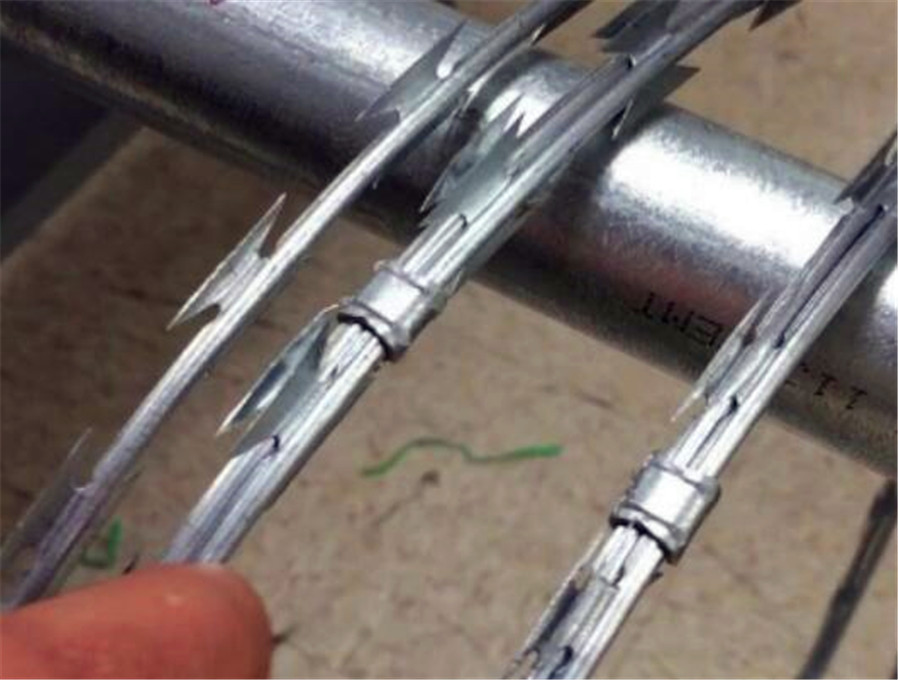

450mm Concertina BTO22 Razor Barbed Wire Mesh Galvanized Fencing Wire
Product Description
Razor barbed wire is a kind of modern security fencing tools fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, also the special designs making climbing and touching extremely difficult. The wire and strips are galvanized proceeded to prevent corrosion.
Single Coil Razor Wire
Single coil Concertina Wire is installed without clips. It runs in natural loops on walls. Cost less and can be easily installed.
Crossed Razor Wire
Two pieces of razor wire were bounded together by clips to make it more firm.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
Flat warp razor wire
Flat warp razor wire is a new type of razor barbed wire. Press two loops into flat then expand them across. Usually we use them together with line razor barbed wire to build a defending wall.
| Standard Specification of Razor Barbed Tape Coil |
| Type | Coil Diameter | Loops Amount | Coverage Length |
| BTO-10/12/22/18/30 | 20" / 500mm | 102 | 50 feet |
| BTO-10/12/22/18/30 | 24" / 600mm | 86 | 45 feet |
| BTO-10/12/22/18/30 | 27" / 700mm | 72 | 38 feet |
| BTO-10/12/22/18/30 | 31" / 800mm | 64 | 32 feet |
| BTO-10/12/22/18/30 | 38" / 960mm | 52 | 28 feet |
| CBT-65/60 | 38" / 960mm | 33 | 26 feet |
| CBT-65/60 | 20" / 500mm | 41 | 32 feet |
| CBT-65/60 | 27" / 700mm | 41 | 32 feet |
| CBT-65/60 | 38" / 960mm | 53 | 42 feet |
| Standard Specification of Barb |
| Type | Wire dia | Barb thickness | Barb length | Barb width | Barb space |
| BTO-10 | 2.5mm±0.1 | 0.5mm±0.05 | 10mm±1 | 13mm±1 | 26mm±1 |
| BTO-12 | 2.5mm±0.1 | 0.5mm±0.05 | 12mm±1 | 15mm±1 | 26mm±1 |
| BTO-18 | 2.5mm±0.1 | 0.5mm±0.05 | 18mm±1 | 15mm±1 | 33mm±1 |
| BTO-22 | 2.5mm±0.1 | 0.5mm±0.05 | 22mm±1 | 15mm±1 | 34mm±1 |
| BTO-30 | 2.5mm±0.1 | 0.5mm±0.05 | 30mm±1 | 18mm±1 | 45mm±1 |
| CBT-60 | 2.5mm±0.1 | 0.5mm±0.05 | 60mm±2 | 32mm±1 | 100mm±2 |
| CBT-65 | 2.5mm±0.1 | 0.5mm±0.05 | 65mm | | |
Strict Control of Raw Materials
Processing & Packaging
About Us
SUNSI is a competitive manufacturer of metal fence wire and barrier. Our professional products range over razor barbed wire, chain link fence, welded wire mesh and barrier. With a strong technical team and skilled personnel, our products have high reliability and performance. We have built up a loyal clientele in African, Middle East, South Asian and Europe. SUNSI would like to join hands with you to create bilateral value.
